DIRECT DRILLS FOR GRASSLAND & ARABLE FARMING

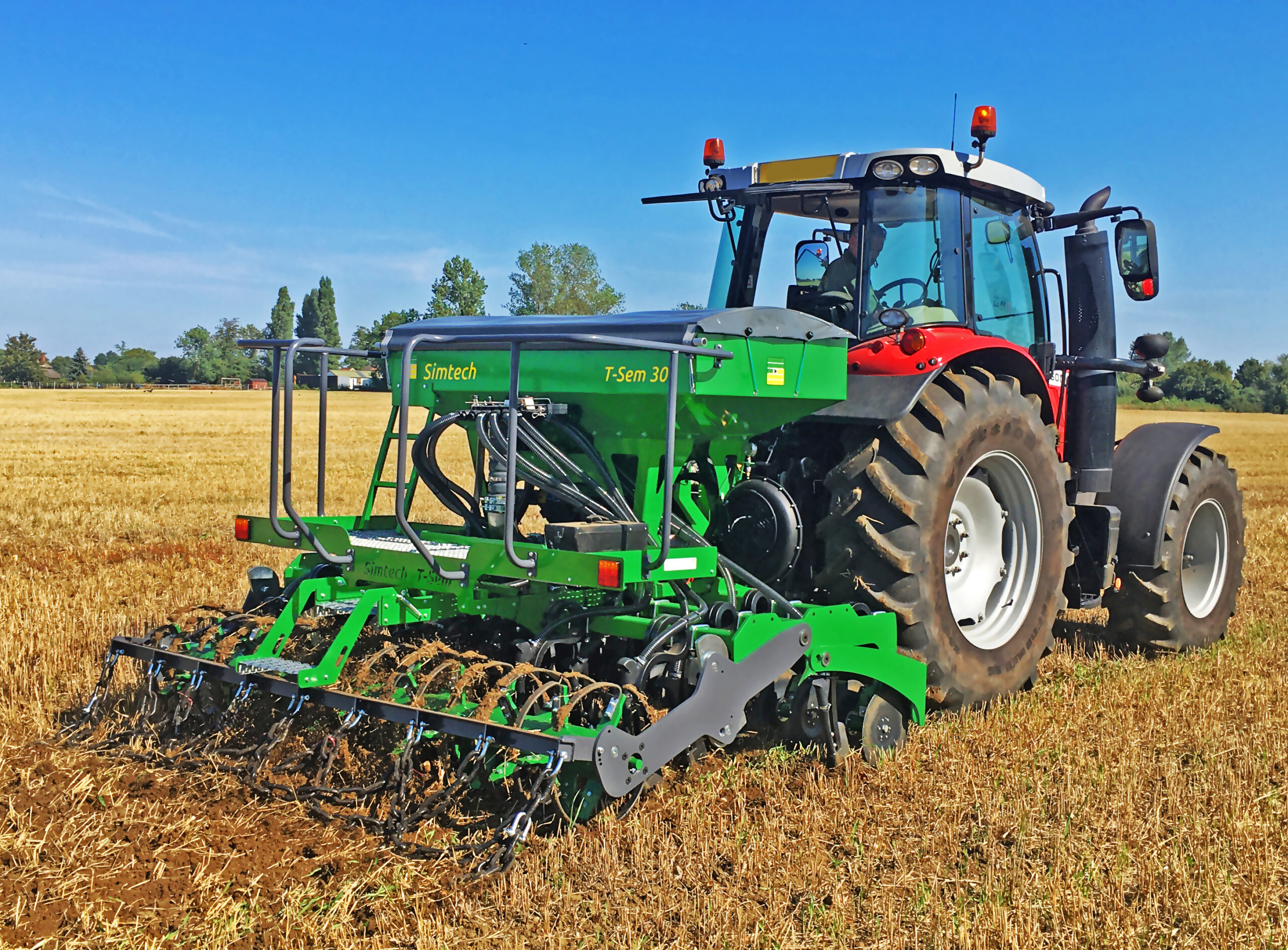

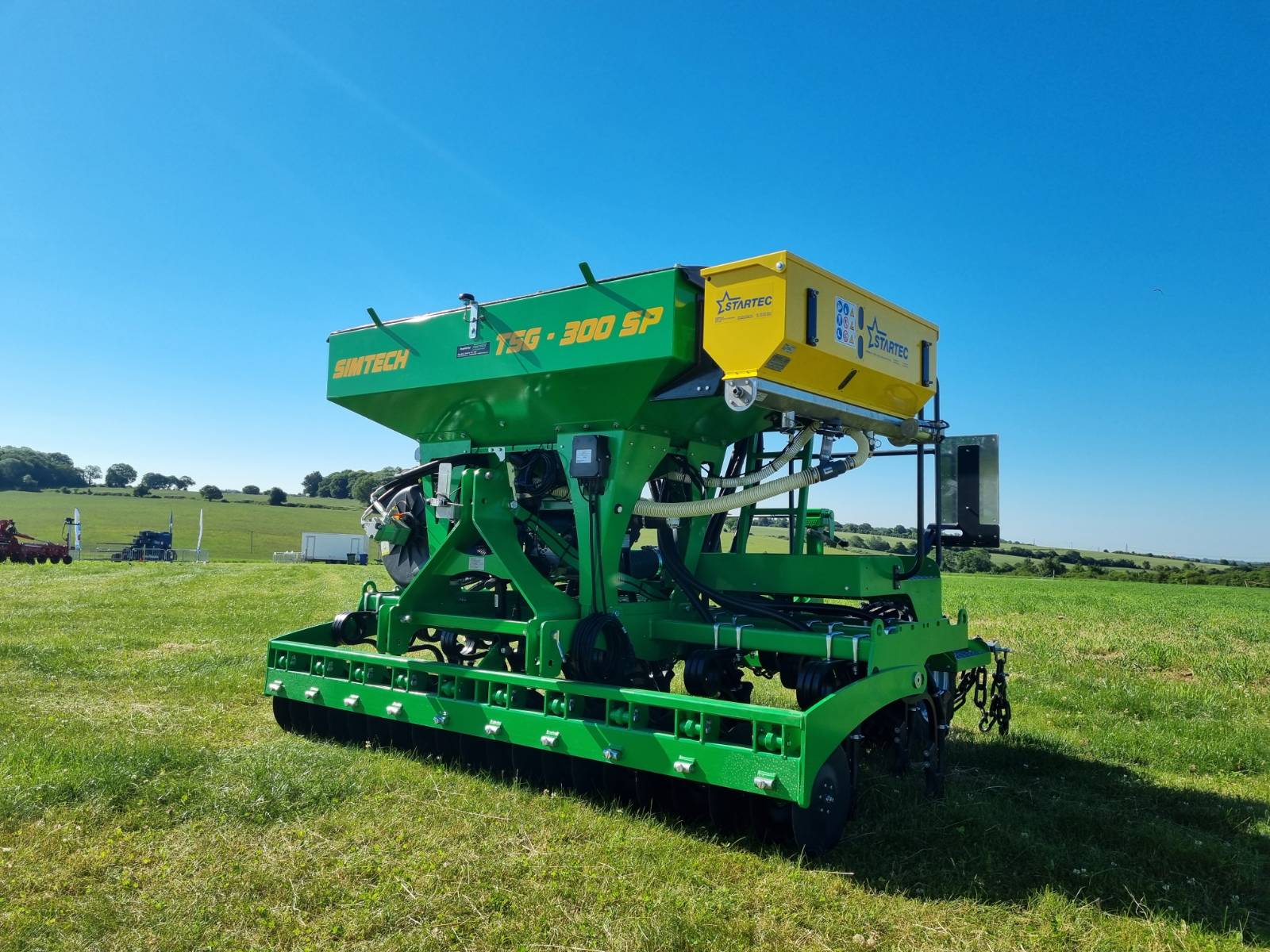

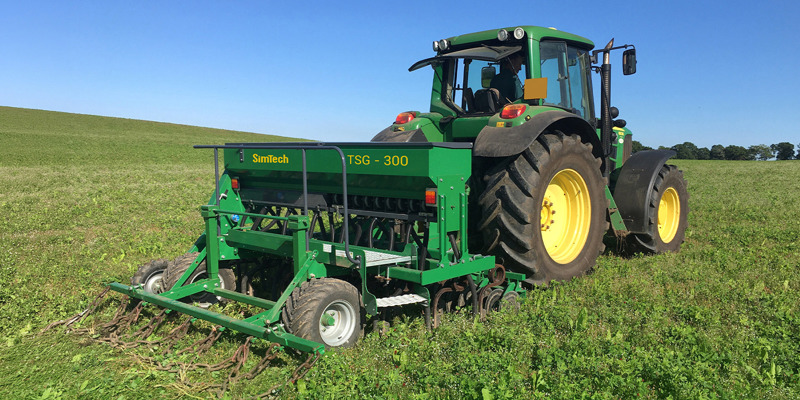

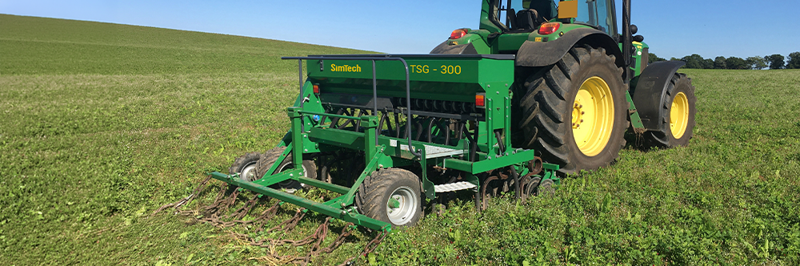

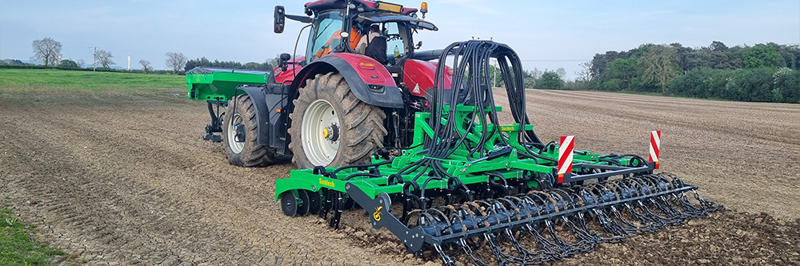

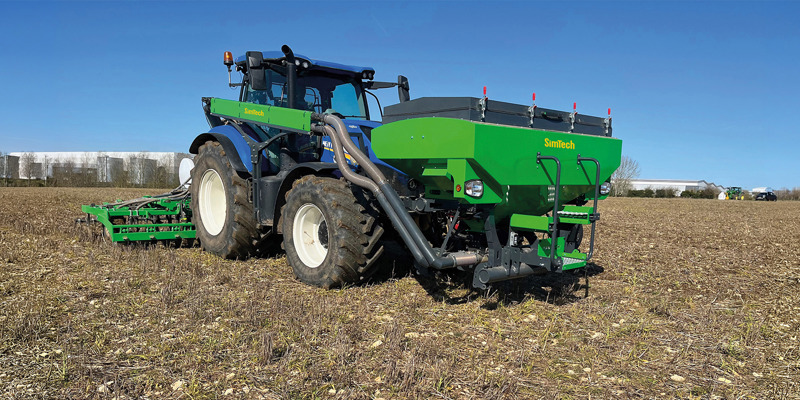

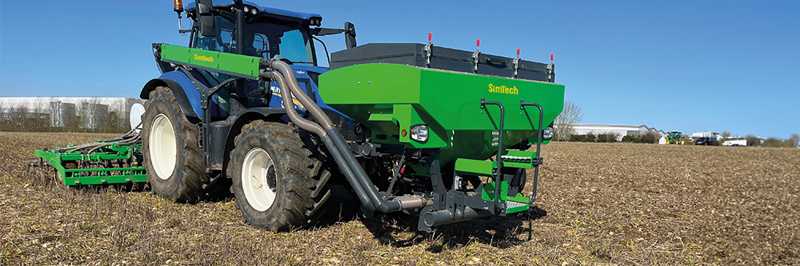

The Simtech range includes simple gravity fed box drills starting at 1.8m for viticulture and extends up to 6m folding air drills with high output front hopper and rear toolbar arable versions available for high trash conditions.




ABOUT SIMTECH

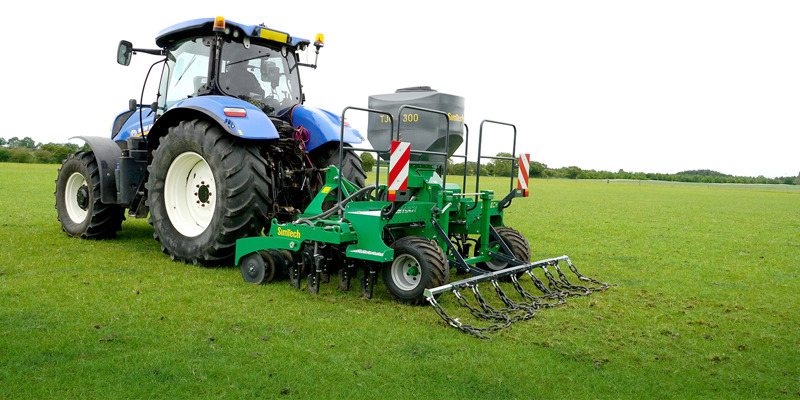

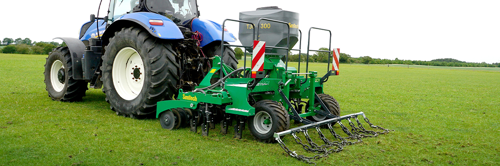

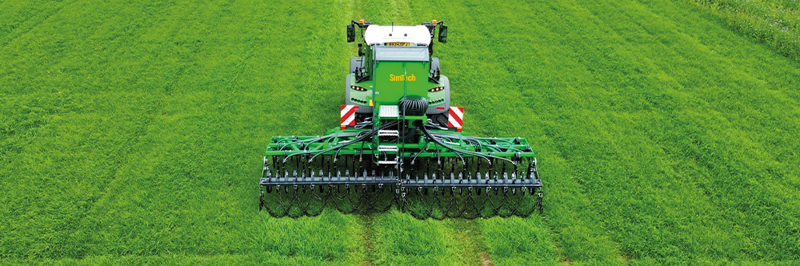

Established in 2006, the Simtech brand offers a range of direct drills designed for both arable and grassland enterprises. The line-up includes gravity, applicator and pneumatic models to suit every farm’s direct drilling requirements. In 2025, OPICO assumed distribution of the Simtech range.

A culmination of many years of evolution, the Simtech range is based around the world renowned and time proven T-slot technique of using a disc and tine to create a micro environment to protect and nurture the seed.

After 10 years of distributing, selling and supporting a number of variants of direct and no-till drill George Simon took the plunge and established Simtech in 2006 and started to develop his own range of grassland and arable drills.

A culmination of many years of evolution, the Simtech range is based around the world renowned and time proven T-slot technique of using a disc and tine to create a micro environment to protect and nurture the seed.

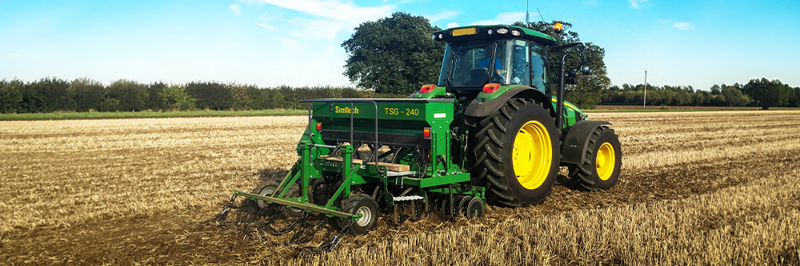

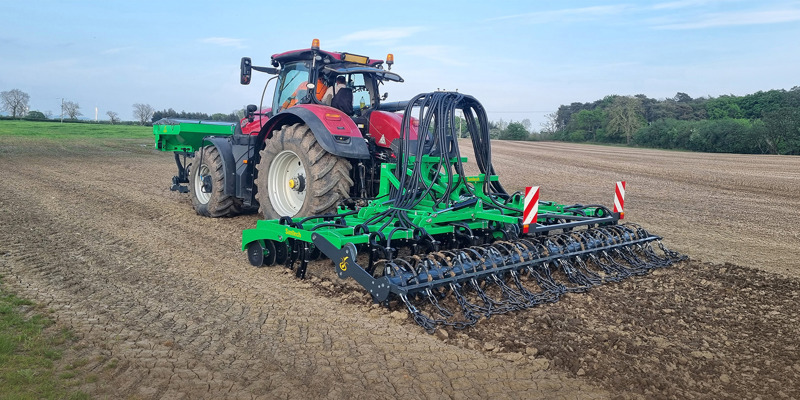

The Simtech range includes simple gravity fed box drills starting at 1.8m for viticulture and extends up to 6m folding air drills with high output front hopper and rear toolbar arable versions available for high trash conditions.

The leading disc is a key component of the drill, when direct drilling. It is used to cut through grass sward’s or crop residue providing a lead in for the patented T-slot tungsten tipped coulter which opens the seed furrow and deposits the seed.

As a result of the inverted T coulter design the seed furrow is wider at the bottom than where the coulter enters the ground. This ensures the top of the furrow closes in above the seed leaving it in a protected moist micro environment.

The rake angle of the coulter ensures that the base of the furrow is permeable promoting drainage and enabling easy rooting. Behind the coulter the option of a simple chain bar which drags over the seed slot or a spring roller for heavier soil ensure the soil is left firm but the surface is open and permeable.

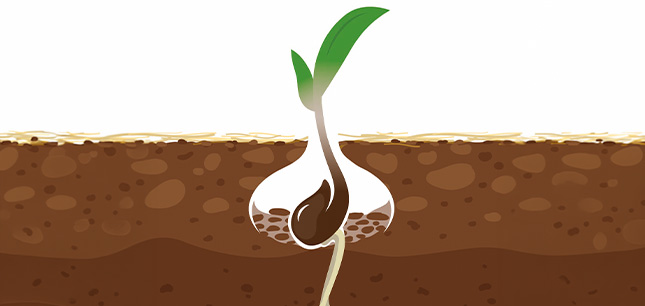

T-SLOT TECHNOLOGY

The inverted T-slot technique ensures unmatched results across all surfaces, soil types and climates. Leading discs pre-slice an opening in front of, and in line with, the tine coulter which places the seed. The disc cuts through trash and slices through any root structure under the soil surface preventing residue from blocking the drill and enabling unwanted material to be cleared out of the seed slot by the coulter.

The creation of a disc slot ahead of the tine also helps minimise soil surface disturbance by the following coulter, preventing weed germination and giving the new seed the best possible start.
The tine and patented Z-tip coulter are centred behind the opening disc so that the front edge of the coulter simply opens up the slot already created by the disc.

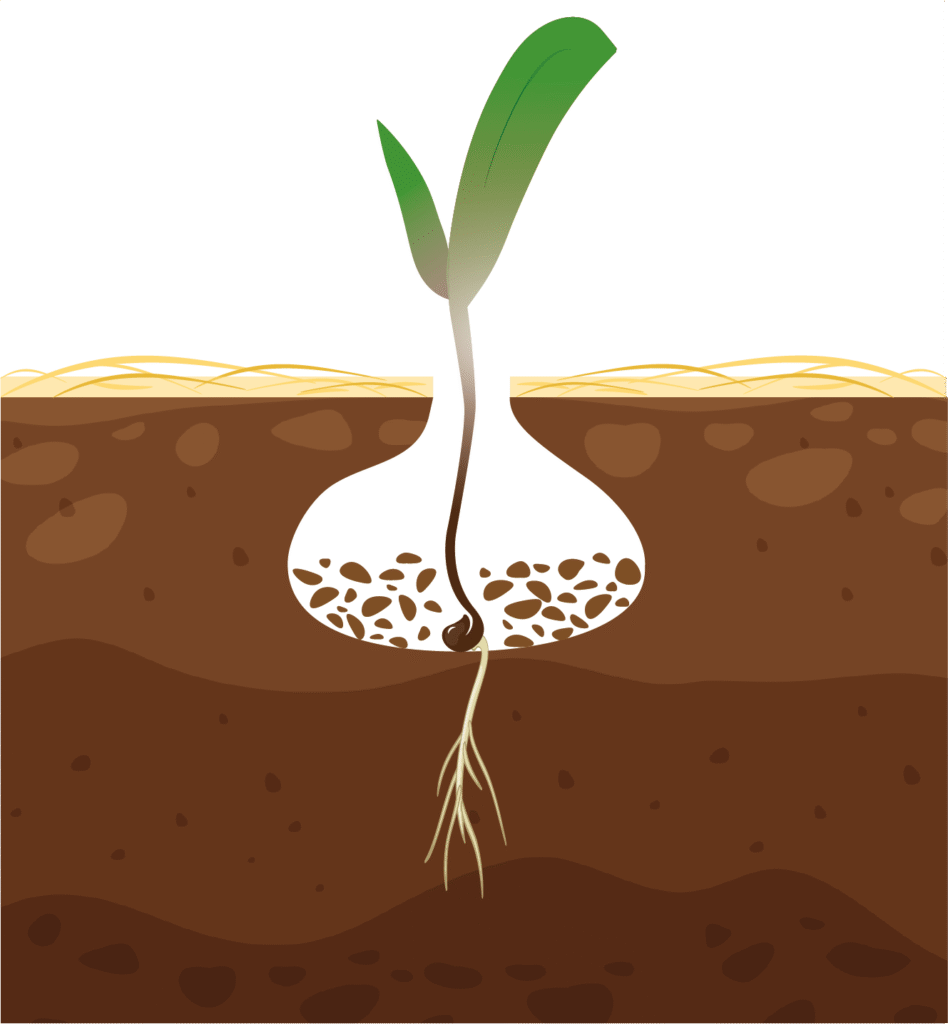

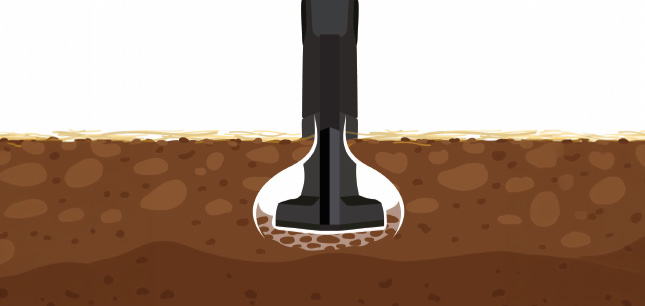

The inverted “T” shape of the Z-tip coulter then creates a bulbous slot with fine tilth at the bottom and a narrow opening at the top. By moving a small amount of soil around the seed the Z-tip also mineralises local nutrients making them available to the seedling and assisting establishment.

This “T-slot” provides the perfect environment for the newly placed seed to germinate and start to grow. The tilth at the base of the slot ensures drainage so that the seed doesn’t sit in water in wet conditions and the narrow opening at the top allows the new plant to emerge without allowing the T-slot to dry out in dry conditions. At the same time moisture is retained in the environment created by the T-slot.
